Your Daylighting Information
Daylighting Information

The information presented in this document is based on Meteosat Satellite images
obtained every half hour - See our advanced guide for more information.

Satel-LightSite:Paris, France
Lat:48°52'N Lon:2°19'EAlt:35 mClock Time:GMT+1 (Summer: GMT+2)
From:8:00To:18:00Using:Clock TimeYears:1996 to 2000
Months Selected



Case Study:#1 - Facade: 4.20 m x 1.40 m
Glazing:Standard Double PaneSurfaces:Ceiling: 70%, Walls: 40%, Floor: 30%
Orientation:SouthObstruction:NoneGround:0%
Case Study
WorkPlan


Download a file with the half hour data
used to produce your information (3652 k)

This file has been compressed using the ZIP format. To uncompress it,
use WinZip (Windows), PKZIP (Windows, Unix) or ZipIt (MacOS).



Satel-LightSite:Paris, France
From:8:00To:18:00Using:Clock TimeYears:1996 to 2000
Information:Percentage of Known, Derived, Missing and Night data (%)

  Jan. Feb. Mar. Apr. May Jun. Jul. Aug. Sep. Oct. Nov. Dec. Total
Known 70 86 99 98 98 98 98 98 98 89 74 65 89
Derived 17 13 1 2 2 2 2 2 2 8 16 18 7
Missing 0 0 0 0 0 0 0 0 0 1 1 0 0
Night 13 1 0 0 0 0 0 0 0 2 9 17 4



Satel-LightSite:Paris, France
From:8:00To:18:00Using:Clock TimeYears:1996 to 2000
Months Selected

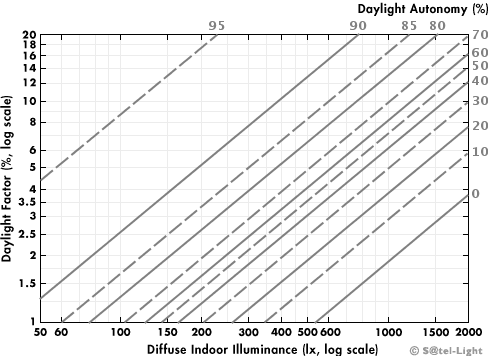

Information:Daylight Autonomy Diagram



Satel-LightSite:Paris, France
From:8:00To:18:00Using:Clock TimeYears:1996 to 2000
Case Study:#1 - Facade: 4.20 m x 1.40 m
Glazing:Standard Double PaneSurfaces:Ceiling: 70%, Walls: 40%, Floor: 30%
Orientation:SouthObstruction:NoneGround:0%
Information:Daylight Autonomy for an Indoor Illuminance of 500 lx (%)

January
February
March



April
May
June



July
August
September



October
November
December



Total







Satel-LightSite:Paris, France
From:8:00To:18:00Using:Clock TimeYears:1996 to 2000

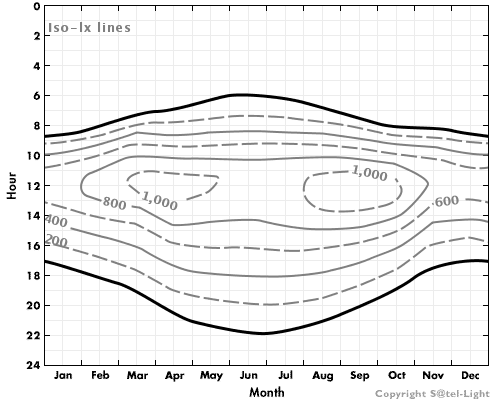

Parameter:Diffuse Illuminance on Work Plane at Point 24
Information:Monthly Mean of hourly values (lx)



  Jan. Feb. Mar. Apr. May Jun. Jul. Aug. Sep. Oct. Nov. Dec. Total
8-9 22 149 412 357 410 446 418 402 302 137 148 22 269
9-10 296 488 716 614 655 669 678 677 609 462 433 281 548
10-11 588 738 949 876 882 839 857 917 895 782 685 530 795
11-12 729 890 1,083 1,043 1,026 938 955 1,054 1,107 996 796 680 941
12-13 751 882 996 1,052 992 962 925 1,104 1,167 1,088 698 649 939
13-14 587 712 780 978 899 885 887 1,029 1,031 944 547 500 815
14-15 429 540 611 836 783 763 822 887 860 723 386 340 665
15-16 271 375 468 654 674 658 694 688 665 524 238 192 509
16-17 131 242 347 525 569 553 591 558 485 347 95 57 376
17-18 14 92 219 400 446 454 466 439 357 214 4 0 259



Satel-LightSite:Paris, France
From:8:00To:18:00Using:Clock TimeYears:1996 to 2000
Parameter:Diffuse Illuminance on Work Plane at Point 24

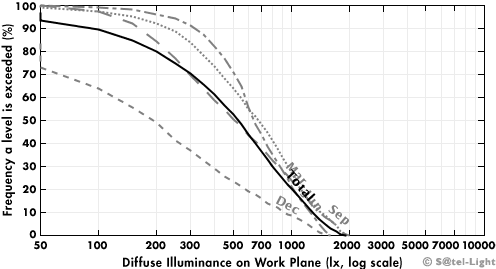

Information:Cumulative Frequency of half hourly values (%)

Download a text file with all monthly values of this plot



Satel-LightSite:Paris, France
From:8:00To:18:00Using:Clock TimeYears:1996 to 2000
Case Study:#1 - Facade: 4.20 m x 1.40 m
Glazing:Standard Double PaneSurfaces:Ceiling: 70%, Walls: 40%, Floor: 30%
Orientation:SouthObstruction:NoneGround:0%
Information:Monthly Mean Sunshine Duration (%)

January
February
March



April
May
June



July
August
September



October
November
December



Total
